HSC-I Shallow undercut anchor

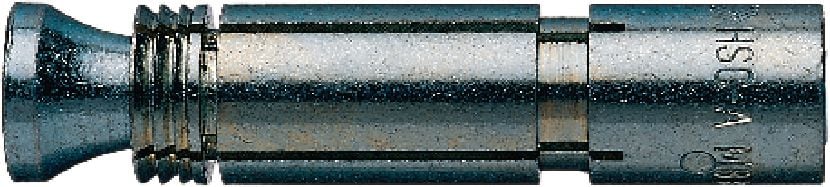

Safety anchor HSC-I M10x50 #31144
Ultimate-performance shallow undercut anchor (carbon steel, internal thread)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Internally Threaded
- Approvals / test reports: ETA, Fire
Customers also searched for heavy duty flush anchors, heavy duty undercut anchors, heavy duty countersunk anchors, heavy duty internally threaded anchors or heavy duty wedge anchors.
Choose options
Anchor size
- M10
Standard embedment depth
- 50 mm
Pack size
- 25 pc
Quantity
Pack
Total Pieces
25
Discounted net, exclusive of 2% handling fee
Rp3,645,232.50
Rp145,809.30 / 1 each
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Internally Threaded
Approvals / test reports
ETA, Fire
PROFIS software
Yes
Documents
Features & Applications
Features
- Shallow embedment depth for thin concrete slabs or where permissible drilling depth is limited
- Combines high working loads with small edge distances and close spacing thanks to very low expansion forces
- Self-undercutting facilitates fast and reliable installation – no separate undercutting tool or handling needed
- The resulting keying effect keeps the anchor secure even in cracked concrete under shock loads
- Requires a plain cylindrical drilled hole, no separate undercutting operation
Applications
- Safety-relevant, medium-duty fastenings in cracked or uncracked concrete, especially where shallow embedment and/or small edge distance or close spacing is required

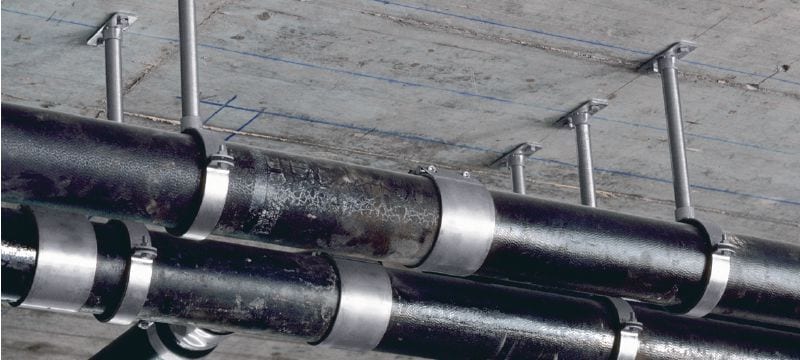

- Examples: stair hand rails, sprinkler pipes, air ducts, seating, facade substructures, car park barriers, etc.
