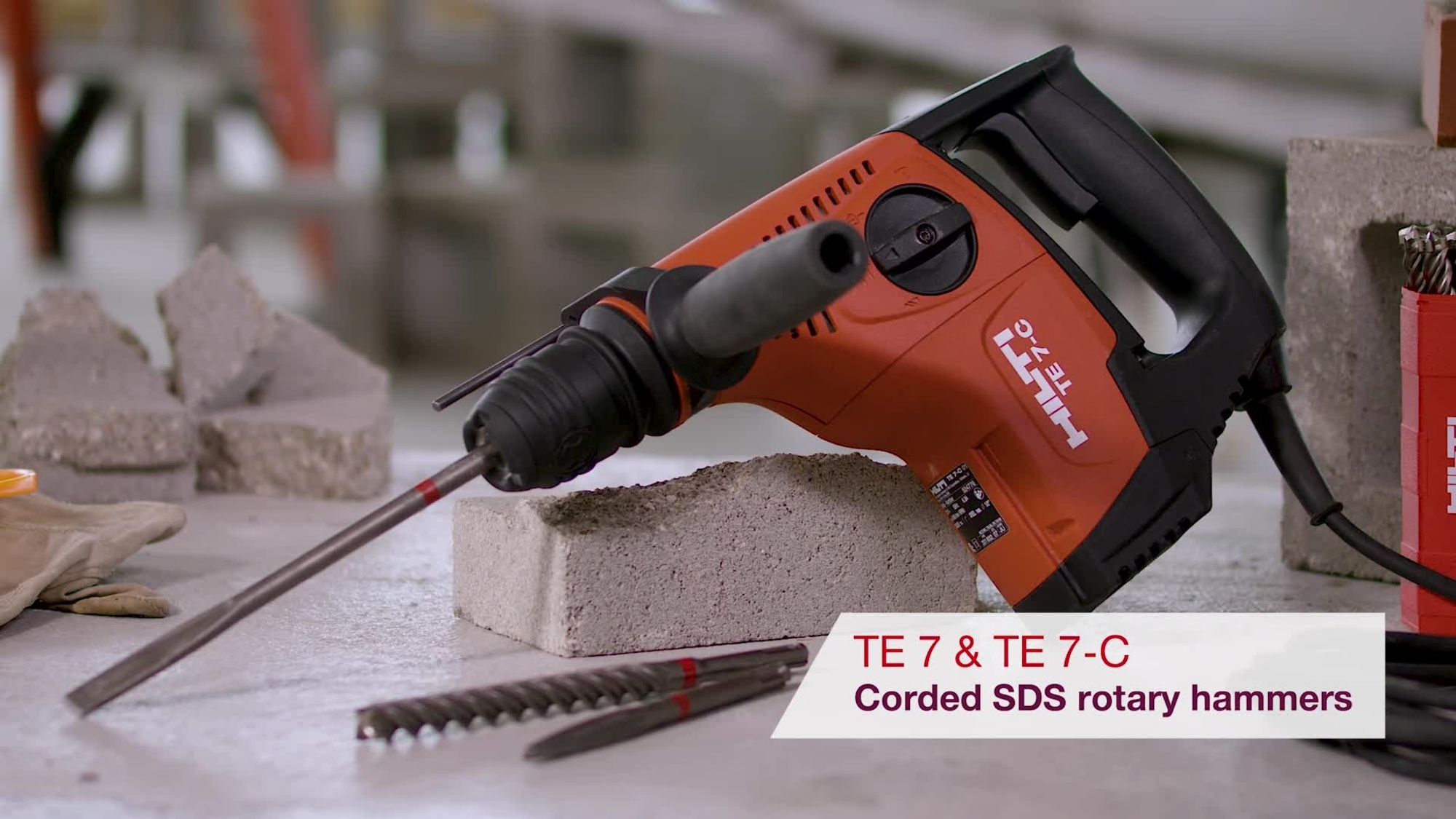

Powerful D-grip, triple-mode SDS Plus (TE-C) rotary hammer with chipping function

  • Weight according to EPTA-Procedure 01/2003 without battery: 3.4 kg
  • Optimum hammer drilling range: 6 - 16 mm
  • Single impact energy: 2.6

Customers also searched for Mesin BorBorRotaryHammer Drill or SDS Plus.

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
3.4 kg
Optimum hammer drilling range
6 - 16 mm
Single impact energy
2.6
Working mode
Hammer drilling, Drilling, Chiselling, Chisel setting
Hammer drilling diameter range
4 - 28 mm
Hammer drilling RPM
740 rpm
Full hammering frequency
4020 impacts/minute
Functionality
Chipping, Integrated Dust Removal System (DRS), Removable chuck, Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
17 m/s² 1
Triaxial vibration for chiselling in concrete
17 m/s² 2
A-weighted emission sound pressure level
90 dB (A) 3
Dimensions (LxWxH)
343 x 86 x 215 mm
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. according to EN 62841-2-6

Documents

Features & Applications

Features

  • Ergonomically designed D-grip for comfortable use over long periods
  • Robustly built – engineered for maximum reliability and long life
  • High drilling performance
  • Virtually dustless drilling when used with the DRS-M dust removal system
  • Quick-change TE-C Click chuck for versatility and ease of use

Applications

  • Drilling and hammer drilling in concrete and masonry
  • Corrective chiselling and small channel openings in concrete
  • Occasional drilling in wood and steel with optional quick-release chuck
  • Drilling in concrete in clean areas using the integrated dust removal system (DRS-M)
  • Cutting socket recesses in masonry

For approval or certificate information, please see individual items.
