HIT-RE 500 V3 Epoxy anchor
New productItem #r4929903
Ultimate-performance injectable epoxy mortar with approvals for rebar connections and heavy-duty anchoring
- Base materials: Concrete (cracked), Concrete (non-cracked)
- Approvals / test reports: ETA, ICC-ES report (concrete), Seismic
- Seismic loading: Yes
Share
Customers also searched for Lem Beton, Rebar, Angkur Chemset, Chemical Anchor or Epoxy
Features
- High performance and technical superiority as per international approvals
- Suitable for diamond-cored holes – when prepared using the TE-YRT roughening tool
- Injectable epoxy suitable for all-year use – cures at temperatures down to -5°C / 23°F
- Longer working time – allows greater flexibility during installation
- Suitable for water-filled holes and underwater applications (depending on rod specification and approvals)
Applications

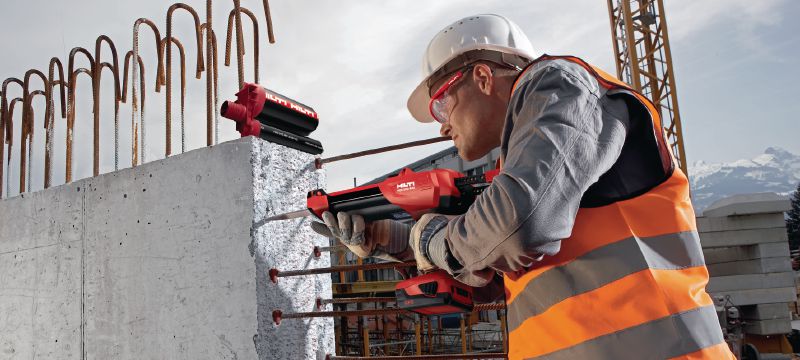

- Structural connections with post-installed rebar (e.g. extension/connection to walls, slabs, stairs, columns, foundations, etc.)
- Structural renovation of buildings, bridges and other civil structures, retrofitting and re-strengthening of concrete members possible
- Anchoring structural steel connections (e.g. steel columns, beams, etc.)
- Fastenings requiring seismic qualification
- Fastening in natural stone and wood, including GLT and CLT made by spruce, pine or fir.
For approval or certificate information, please see individual items.
Technical Data
Documents
-
- ETA-16/0180_HIT-RE 500 V3_Anchor_EC2_50years_102016, English, French, [ 1.1 MB ]
- ETA-16/0142_HIT-RE 500 V3_Rebar_EC2_50years_052019, English, German, French, Polish, [ 8.3 MB ]
- CSTB MRF 1526054277 B fire evaluation , English, [ 2.4 MB ]
- ETA-16/0143_HIT-RE 500 V3_Anchor_EC2_50&100years_052019, English, French, [ 5.3 MB ]
- BZS_D_16-601_RE-500_V3_injection_mortar_en, English, [ 218.9 kB ]
