X-BT M8 Threaded studs

Threaded stud X-BT M8-15-6 SN12-R #377074

Configurator
Technical Data
Documents
Features & Applications
Related Products

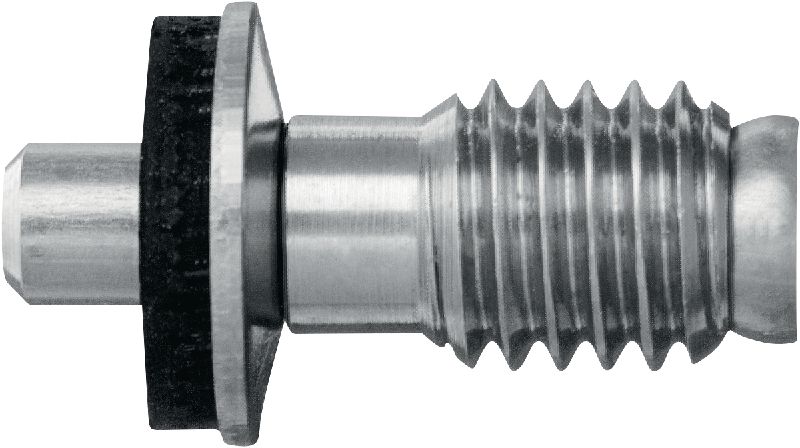

X-BT M8-15-6 SN12-R Stainless steel threaded stud adapted
53736.tif
X-BT, DX 351-BT
19200.tif

Threaded stud for grating and multi-purpose fastenings on steel in highly corrosive environments

  • Base materials: Steel, Stainless steel, Cast iron
  • Minimum thickness of base material (steel): 8 mm
  • Corrosion protection: Stainless steel A4(316) or equivalent
ultimate

Customers also searched for grating or XBT.

Choose options

Thread size
  • M8
Pack size
  • 100 pc
 Product options
Quantity
Pack
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net, exclusive of 2% handling fee
Rp28,252,800.00
Rp282,528.00 / 1 each

Technical Data

Base materials
Steel, Stainless steel, Cast iron
Minimum thickness of base material (steel)
8 mm
Corrosion protection
Stainless steel A4(316) or equivalent
Environmental conditions
Outdoor, areas with heavy industrial pollution, Coastal areas, Outdoor with moderate concentration of pollution, Outdoor with low pollution, Indoor with temporary condensation, Dry indoor, Outdoor temporary applications
Material
Duplex stainless steel (1.4462)
Thread diameter
8 mm
Length
21 mm
Point type
Blunt tip
Approvals
ABS, DNV GL, ICC-ES, LR
Product class
Ultimate

Documents

Technical information
Documentation
pdf Direct Fastening Technology Manual, English [ 6 MB ]

Features & Applications

Features

  • No reworking of base steel – corrosion protection remains intact
  • Versatile – suitable for use on most standard and high-strength construction steel
  • Secure – creates a true weld to the base material for an extremely strong hold and high loading capacity
  • Portable, cordless system – eliminates the need for long electric supply cords
  • Corrosion-resistant – suitable for marine, offshore, petrochemical and power plants applications

Applications

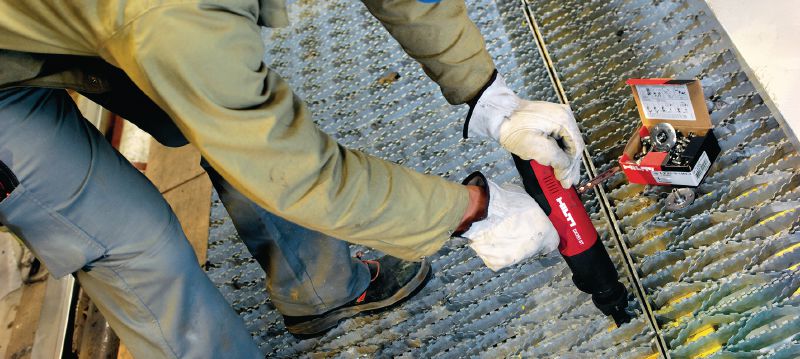

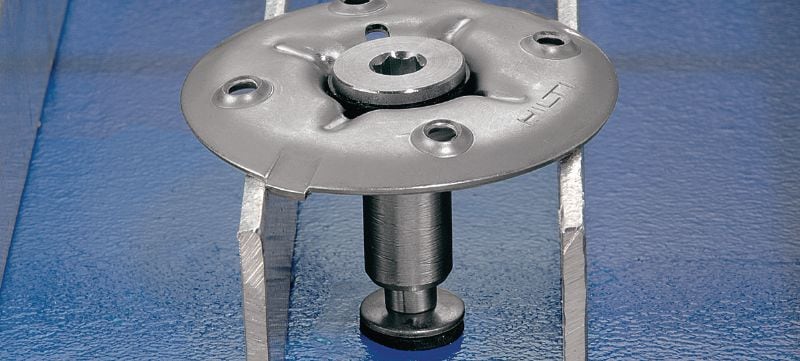

  • Fastening gratings to steel structures using the X-FCM-M and X-FCM-R grating disc
  • Fastening cable trays, strut, light duty electrical applications (T-bars, instrumentation panels, junction boxes)
  • Fastenings to fire coated (PFP) beams
  • Designed to work on steel thicknesses of 8 mm (5/16") and above
