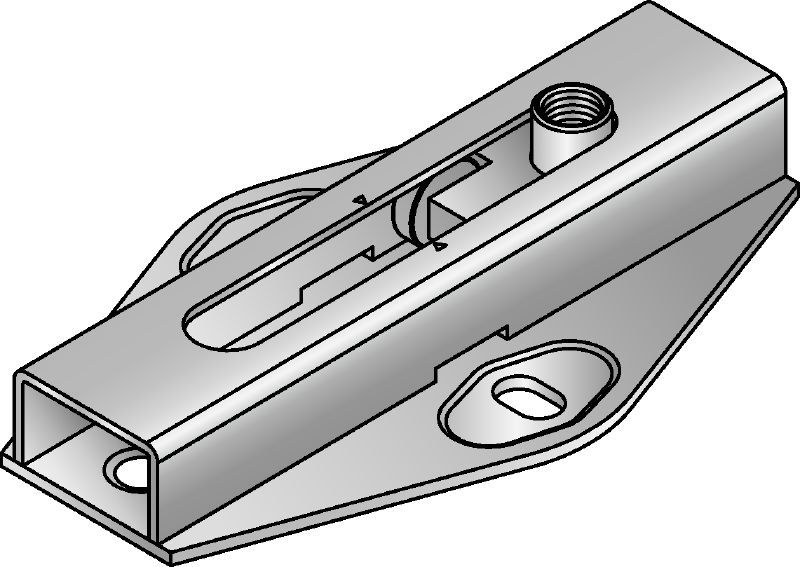

MRG 4,0 roll connector
Galvanised roll connector for medium/heavy-duty heating and refrigeration applications
- Material composition: S235JRG - DIN EN 10025
- Surface finish: Indoor Coated - Electro galvanised
- Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Choose options
Thread connection - M
- M12, M16
Height - H
- 39 mm
Maximum load - F
- 4 kN
Pack size
- 5 pc
Quantity
Packs
Total Pieces
1
Discounted net, exclusive of 2% handling fee
From Rp14,195,000.00
Technical Data
Material composition
S235JRG - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Temperature resistance
-40 - 300 °C
Base material type
Concrete, Steel, Wood
Coefficient of sliding friction
0.08
Documents
Features & Applications
Features
- Suitable for suspended or standing installation applications
- Load classes and capacities matched to Hilti pipe clamps
- Stiffened base plate fits MQ modular support system
- Smooth rolling movement on coated runner in both directions in axial pipe direction
Applications
- Mounting pipes subject to thermal elongation and contraction
- single-point fastening of pipes or in combination with modular support systems
- Recommended for use in dry, interior environments
For approval or certificate information, please see individual items.
