MIP-T Refrigeration pipe clamp (thick insulated)

Refrig. pipe ring MIP-T/165-168 #314184

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003662_v3 (1925626)
LCG003664_v3 (1919224)
LCG003666_v2_cropped (1919243)
LCG003667_v1_cropped (1919261)
IS_PC_MIP-M_-T_0006_(M) (1943485)

Galvanised pipe clamp for maximum productivity in refrigeration applications with an insulation thickness of 31-50 mm

  • Noise reduction: 20 dB (A)
  • Temperature resistance: -40 - 105 °C
  • Surface finish: Indoor Coated - Electro galvanised
ultimate

Choose options

Thickness - T
  • 45 mm
Clamping range - D
  • 164 - 169 mm
Nominal pipe size (imperial)
  • 6 in
Pack size
  • 2 pc
 Product options
Quantity
Pack
Total Pieces
2
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net, exclusive of 2% handling fee
Rp27,638,812.50
Rp13,819,406.25 / 1 each

Technical Data

Details

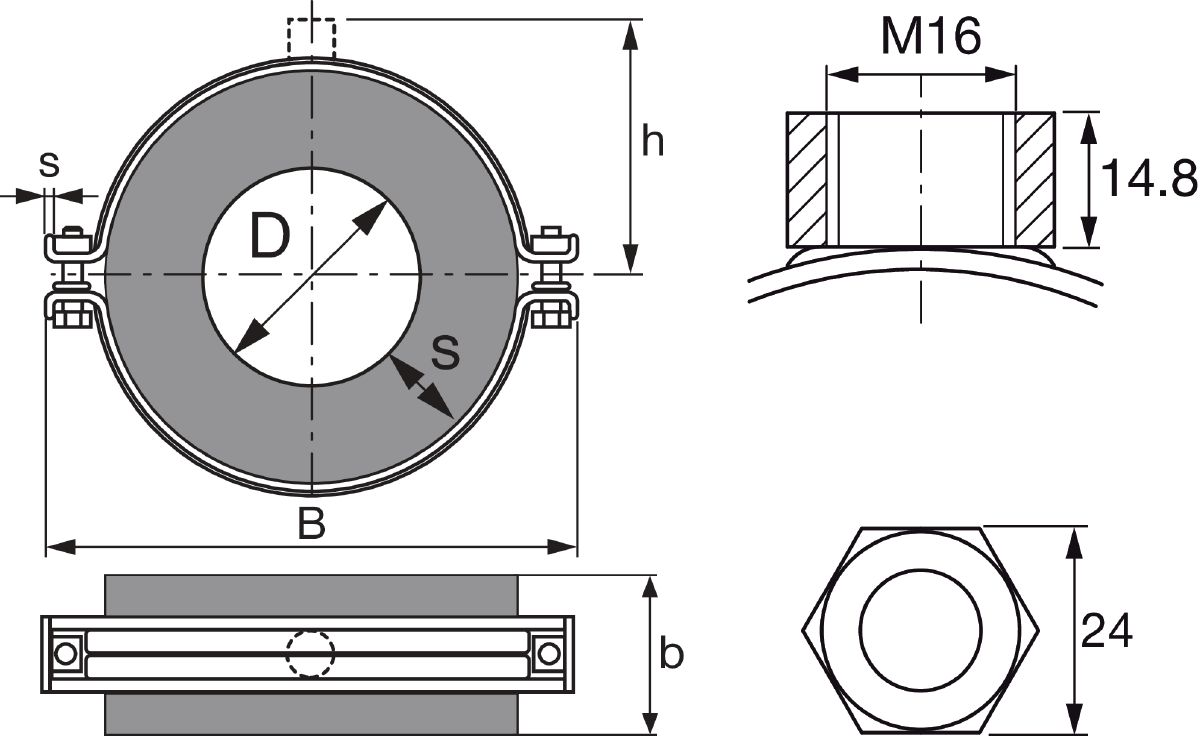

Technical illustrations
Noise reduction
20 dB (A)
Temperature resistance
-40 - 105 °C
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Tightening torque
20 Nm
Thickness - T
45 mm
Length - L
165 mm
Product class
Ultimate
Diffusion resistance
≥ 7000
Thermal conductivity (λ approx. value)
0.036 W/mK
Approx. density
145 kg/m³

Documents

Documentation
Sustainability Documentation
pdf Pipe clamps selection Poster, English [ 1.4 MB ]

Features & Applications

Features

  • Designed for standard insulation thicknesses (insulation material: elastomeric caoutchouc)
  • Continuous joint between refrigeration pipe clamp and pipe insulating material (elastomeric caoutchouc)
  • Thermally decoupled system with integrated vapour (diffusion) barrier to help prevent thermal short circuits
  • Assembly of the insulation core with a handle thanks to the self-adhesive closure
  • Three-stage quick closure with only one screw up to 80 mm; from 88 mm and larger two-screw closure

Applications

  • Mounting pipes up to 221 mm diameter in refrigeration and air conditioning applications
  • Applications where easy fitting of the insulating unit is required
  • No sealants required
