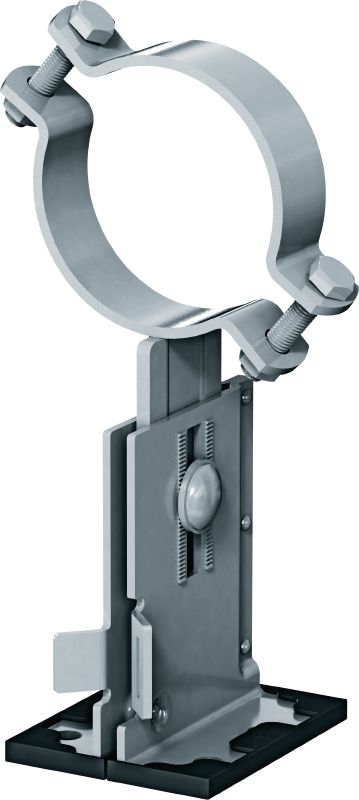

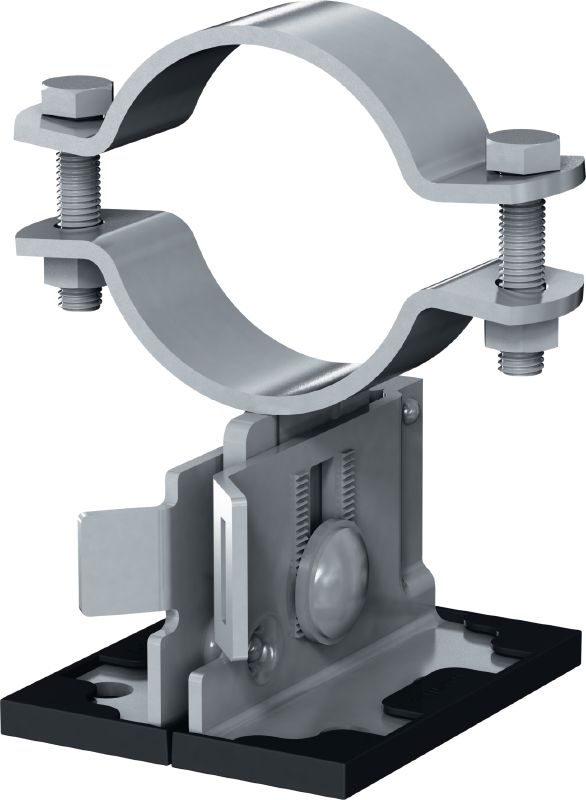

MP-PS 1-1 pipe shoe
Outdoor coated (OC) pipe shoe with height and slope adjustability for heavy industrial applications with outer pipe diameters of 21-173 mm (1/2" to 6")
- Fire resistance (yes/no): No
- Temperature resistance: -20 - 300 °C
- Material composition: Base-plate: S280GD / Modif POSMAC-C, Bows: S235JR - DIN EN 10025, Middle-plate: S235JR - DIN EN 10025, Sliding-plate: PA66 + GF30, Bolt: Steel grade 8.8, Nut: Steel grade 8
Choose options
Clamping range - D
- 32 - 37 mm
- 59 - 65 mm
Height above ground to base of pipe
- 88.5 - 116 mm
Nominal pipe size (imperial)
- 1 in
- 2 in
Nominal pipe size
- 25 mm
- 50 mm
Pack size
- 4 pc
- 8 pc
Quantity
Packs
Total Pieces
1
Discounted net, exclusive of 2% handling fee
From Rp5,130,281.24
Technical Data
Fire resistance (yes/no)
No
Temperature resistance
-20 - 300 °C
Material composition
Base-plate: S280GD / Modif POSMAC-C, Bows: S235JR - DIN EN 10025, Middle-plate: S235JR - DIN EN 10025, Sliding-plate: PA66 + GF30, Bolt: Steel grade 8.8, Nut: Steel grade 8
Material thickness
base-plate: 4mm, Middle-plate: 7mm, Sliding-plate: 3mm, Serrated washer: 4mm
Surface finish
Outdoor Coated - HDG
Hot-dip galvanized
Yes
Stainless steel
No
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Base material type
Concrete, Steel, Modular Support
Wrench size
19 mm
Tightening torque for height adjustment
50 Nm
Length
0 m
Documents
pdf Corrosion handbook, English [ 9.6 MB ]
Features & Applications
Features
- One-for-all versatility – use the same pipe shoe system for fix-, slide-, guided- or freestanding supports to Hilti modular girders, steel beams and concrete
- Extensive software support – simplify calculation by using PROFIS, Hilti FixPoint Calculator, BIM/CAD libraries and various plug-ins
- Load data and documentation available – design according to EN13480-3, Eurocode 3 and MSS-SP58 guidelines for pipe support components
- Quicker installation on-site – easily adjust the height and slope after fastening the pipe shoe in place
- Wider clamping range – suitable for various different pipes with or without additional inlays
Applications
- Fastening pipes to steel beams, concrete or Hilti modular support girders
- Pipe installations in onshore industrial, power generation, pharmaceutical, electronics or automotive manufacturing facilities
- Suitable for application temperatures of up to 300 °C and an insulation thickness of up to 220 mm
- Recommended for use in Indoor or Outdoor with low to moderate pollution (C3)
For approval or certificate information, please see individual items.
