Kit MW-LP L Cable lock with wire rope, loop ending

Configurator
Technical Data
Documents
Features & Applications
Related Products
L_CG003174_v1 (210423)
L_CG003184_v2_cropped (1) (210605)
L_CG003183_v4_cropped (210413)
L_CG003182_v3_cropped (210416)
L_CG003191_v2_cropped (210399)
L_CG003185_v5_cropped (210396)

Wire rope with end loop and adjustable lock for suspending fixtures from suitable building features

  • Material composition: Wire: steel, Lock: aluminum
  • Surface finish: Indoor Coated - Electro galvanised
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Choose options

Diameter - D
  • 1.5 mm
  • 3 mm
  • 5 mm
Length - L
  • 2 m
  • 3 m
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net, exclusive of 2% handling fee
From Rp58,224.15

Technical Data

Material composition
Wire: steel, Lock: aluminum
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

pdf Brochure_en_W4536Wire_Suspension_System_MW_en_2023 [ 2.5 MB ]

Features & Applications

Features

  • Shorter installation time – wire suspension kits give you a much faster alternative to threaded rod
  • Easier to adjust – self-closing wire lock can be adjusted tool-free, making levelling, retrofitting and long drop lengths much simpler
  • Aesthetic – wire rope suspension is a discreet installation method for exposed building services and open soffits
  • Versatile – you can use the same wire suspension kit for a wide range of fixtures and base materials, simplifying inventory management
  • Compatible with Hilti strut channels and MVA ventilation hardware – you can get solutions for virtually every MEP installation from one supplier

Applications

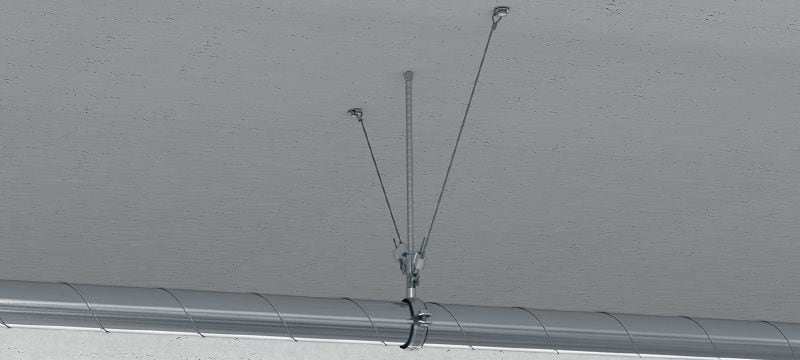

  • Suspending HVAC fixtures, including spiral and rectangular ductwork (using compatible MVA duct hangers), from beams or eyebolts
  • Lateral bracing
  • Suspending electrical fixtures from beams or eyebolts – including cable trays, cable baskets, busbars or lighting
  • Suspending architectural elements from concrete or steel – including acoustic, heating and cooling panels, as well as overhead grids
  • Suitable for use in dry, indoor environments only

For approval or certificate information, please see individual items.
