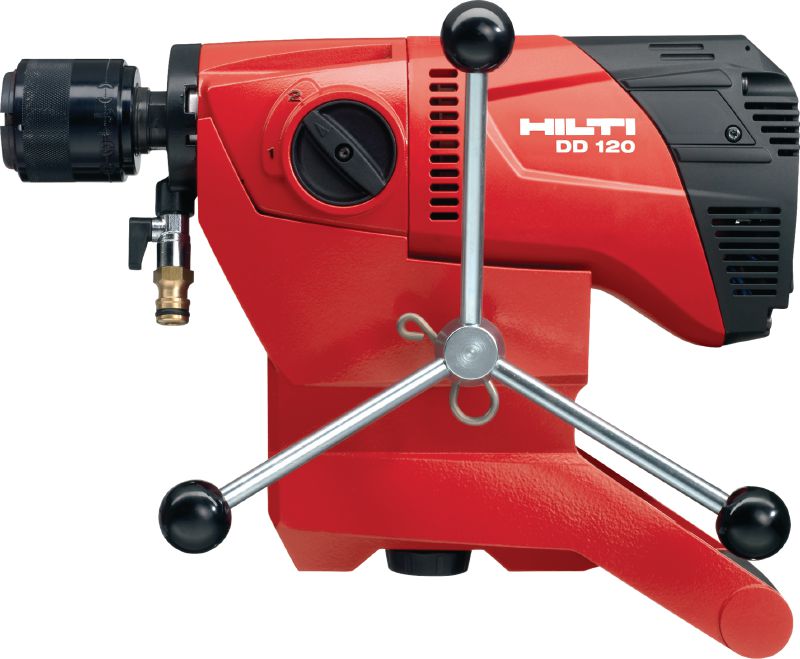

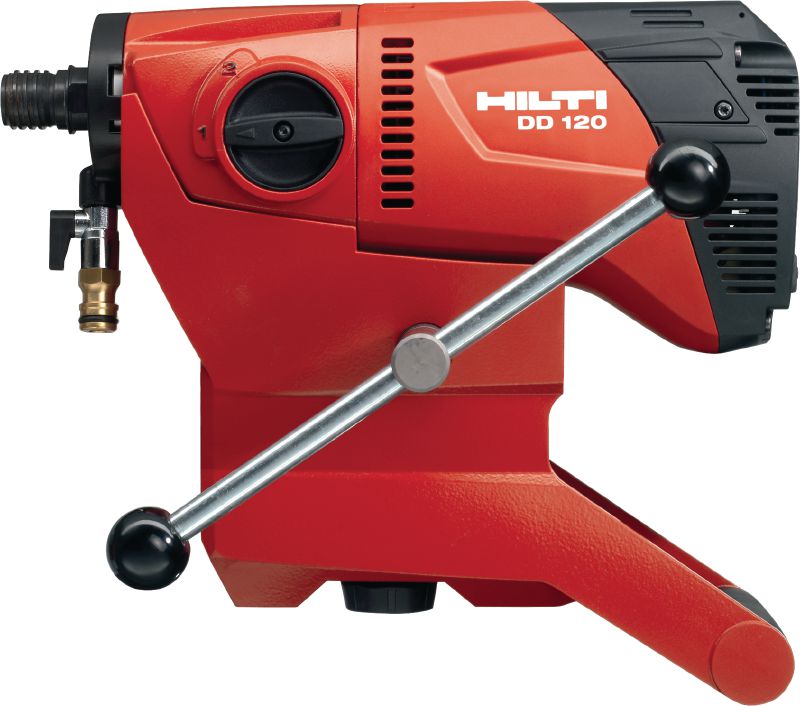

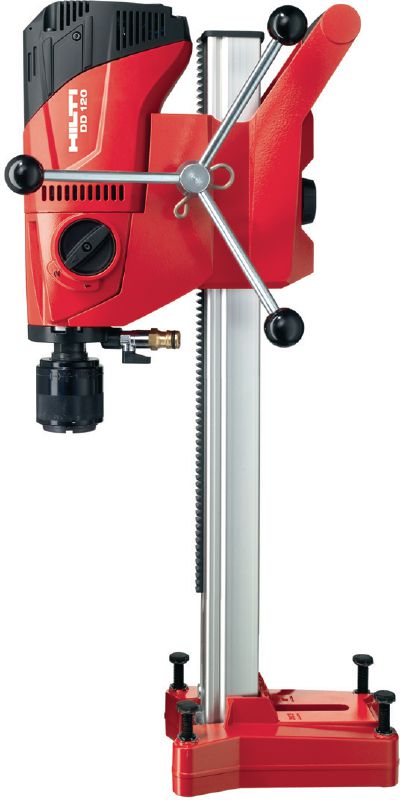

Extremely compact, light and mobile diamond coring machine for rig-based concrete coring from 16-162 mm (5/8 - 6-3/8") in diameter

  • Diameter range: 16 - 162 mm
  • Base material: Concrete
  • Operation mode: Rig-based drilling system

Customers also searched for Mesin Coring, Coring or Core Drill.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net, exclusive of 2% handling fee
From Rp31,008,600.00

Technical Data

Diameter range
16 - 162 mm
Base material
Concrete
Operation mode
Rig-based drilling system
Number of gears
2
No load RPM
gear 1: 740 rpm; gear 2: 1580 rpm
Weight according to EPTA-Procedure 01/2003 without battery
10.5 kg
Weight of complete system
11 kg
Dimensions (LxWxH)
327 x 147 x 330 mm
A-weighted emission sound pressure level
89 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
2.5 m/s²
Tri. vibr. value for drilling into concrete (wet) (ah,DD) - core bit A
PS/PL
Corner accessibility
49 mm
  1. according to EN 62841-2-6

Documents

pdf DD 120 product catalog [ 65.2 KB ]

Features & Applications

Features

  • Exceptionally user-friendly thanks to intuitively designed features and controls
  • Compact and lightweight concrete core drill – for much easier handling
  • Two-speed gearing for optimum speed and torque
  • Power control LED – shows even inexperienced users how to achieve the optimum drilling speed and maximise core bit life
  • Hilti BI+ quick-release connection lets you change core bits in seconds – no tools required (keyless system)

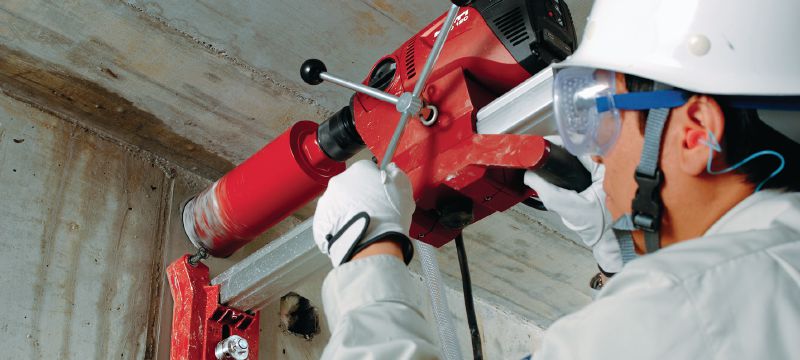

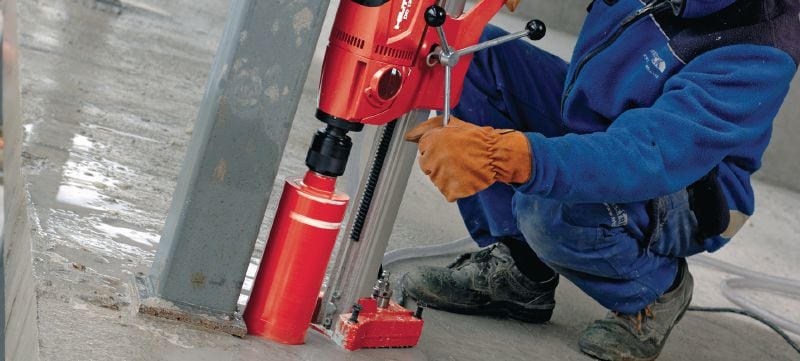

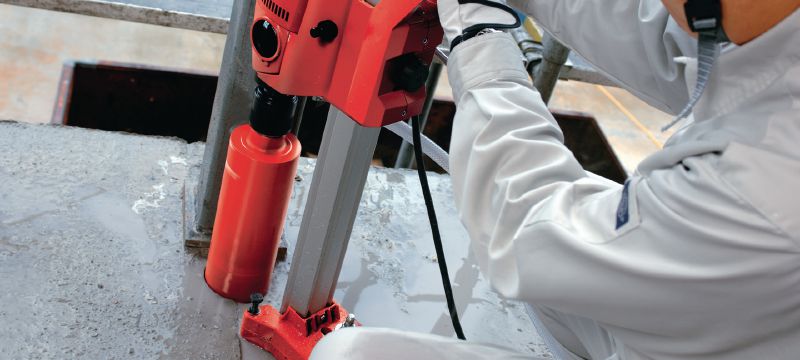

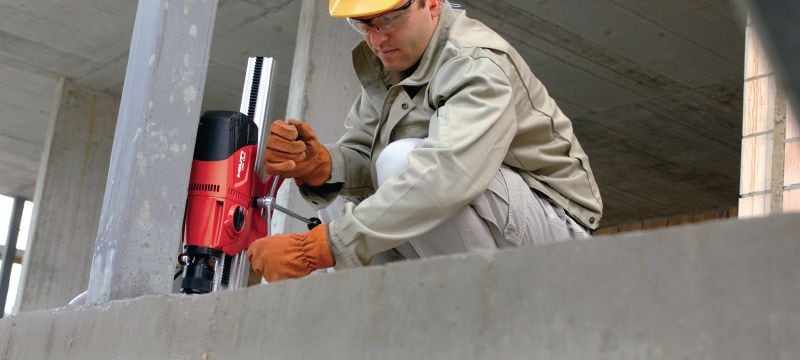

Applications

  • Installing pipes for sanitary, heating and air conditioning
  • Installing water supply and waste water pipes
  • Making openings for cable trays
  • Setting large-diameter anchors and reinforcing bars
  • Installing railings and barriers

For approval or certificate information, please see individual items.

Services

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
More information about LifeTime Services
