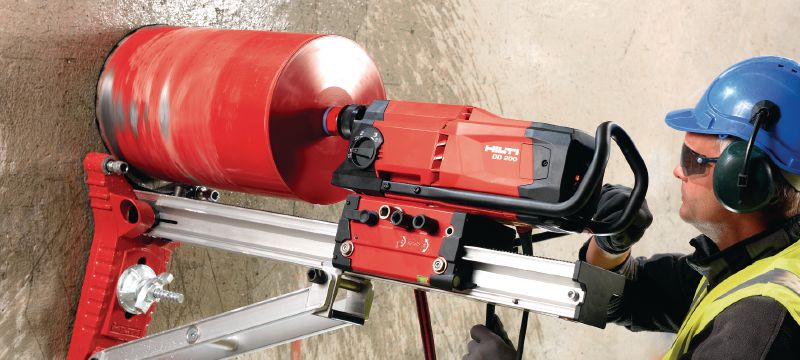

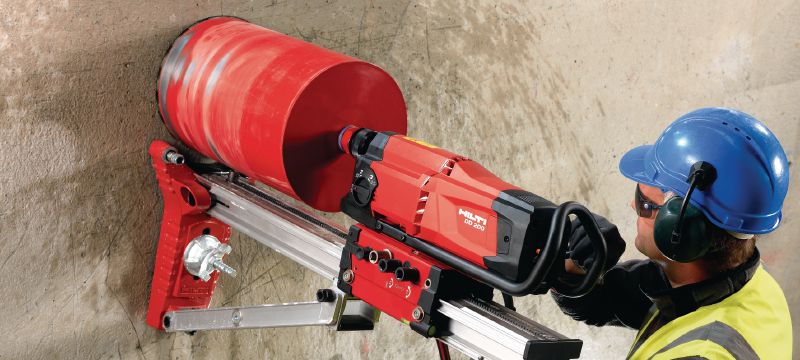

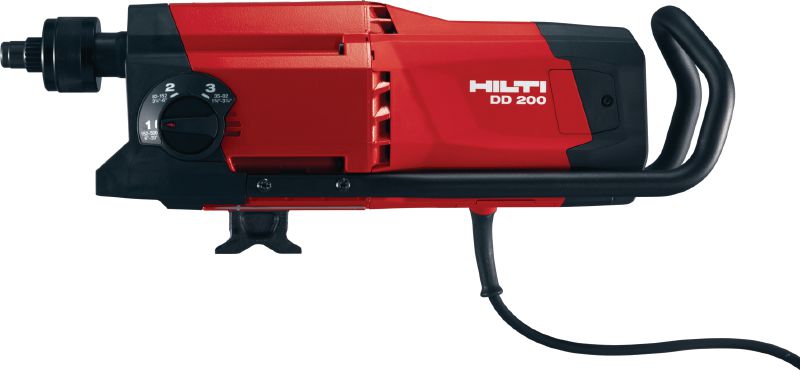

DD 200 G02 Core drill
Heavy-duty diamond drilling tool for coring medium and large diameters up to 500 mm
- Diameter range: 35 - 500 mm
- Base material: Concrete
- Operation mode: Rig-based drilling system
Technical Data
Diameter range
35 - 500 mm
Base material
Concrete
Operation mode
Rig-based drilling system
Number of gears
3
No load RPM
gear 1: 240 rpm; gear 2: 580 rpm; gear 3: 1160 rpm
Weight according to EPTA-Procedure 01/2003 without battery
14.6 kg
Weight of complete system
36 kg
Dimensions (LxWxH)
630 x 190 x 215 mm
A-weighted emission sound pressure level
93 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
2.5 m/s²
Tri. vibr. value for drilling into concrete (wet) (ah,DD) - core bit A
HCL/HCS
Corner accessibility
50 mm
- according to EN 62841-2-6
Documents
Features & Applications
Features
- Air-cooled, heavy-duty drive unit with three-speed gearing and convenient controls
- Optional BL quick-release connection lets you change core bits in seconds – no tools required (keyless system)
- Designed for versatility – suitable for an extremely wide range of applications
- Extremely sturdy, robust design
- Power control LED – shows even inexperienced users how to achieve the optimum drilling speed and maximise core bit life
Applications
- Penetrations for ducts, pipes and cables
- Openings for ventilation
- Stitch drilling for breaches
- Coring holes for service entries

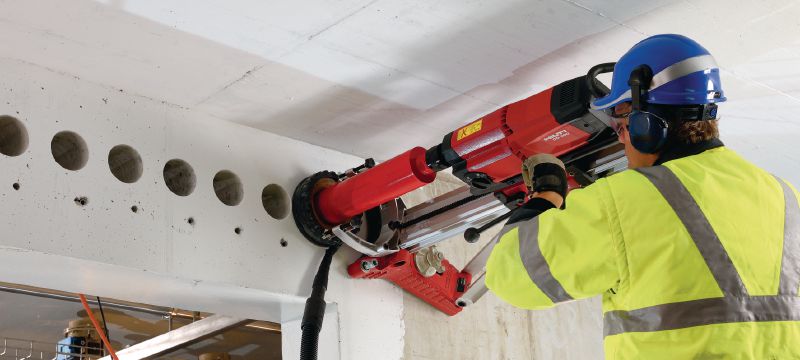

- Coring holes in ceilings, walls and floors without hammering and vibration
For approval or certificate information, please see individual items.
