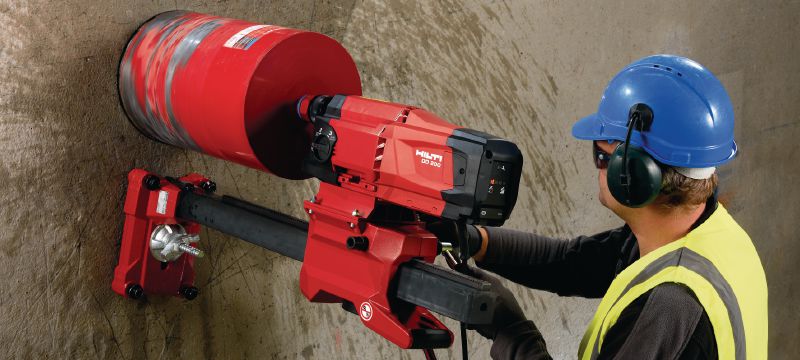

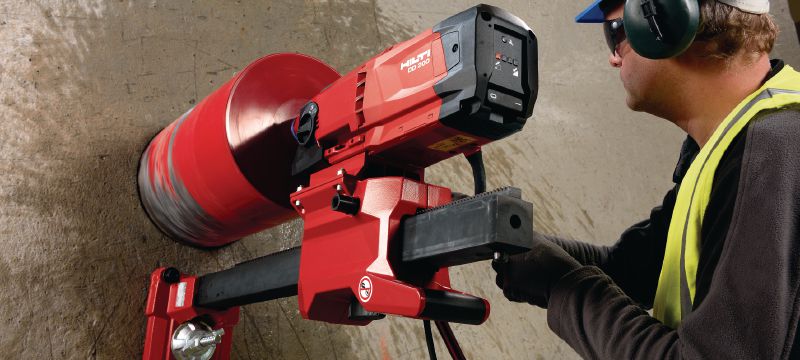

DD 200 G02 (DD-ST 200) Core drill
Simple heavy-duty diamond drilling tool for coring medium and large diameters up to 500 mm
- Diameter range: 35 - 500 mm
- Base material: Concrete
- Operation mode: Rig-based drilling system
Customers also searched for Mesin Coring, Coring or Core Drill.
Technical Data
Diameter range
35 - 500 mm
Base material
Concrete
Operation mode
Rig-based drilling system
Number of gears
3
No load RPM
gear 1: 240 rpm; gear 2: 580 rpm; gear 3: 1160 rpm
Weight according to EPTA-Procedure 01/2003 without battery
20.4 kg
Weight of complete system
33 kg
Dimensions (LxWxH)
550 x 195 x 415 mm
A-weighted emission sound pressure level
93 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
2.5 m/s²
Tri. vibr. value for drilling into concrete (wet) (ah,DD) - core bit A
HCL/HCS
Corner accessibility
50 mm
- according to EN 62841-2-6
Features & Applications
Features

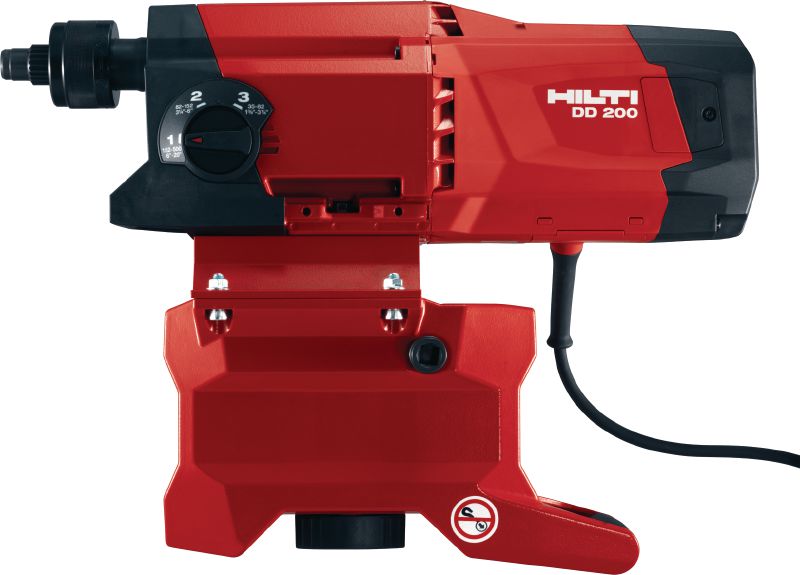

- Air-cooled heavy-duty drive unit with three-speed gearing and convenient controls
- Optional BL quick-release connection lets you change core bits in seconds - no tools required (keyless system)
- Extremely sturdy, robust design
- Power control LED – shows even inexperienced users how to achieve the optimum drilling speed and maximise core bit life

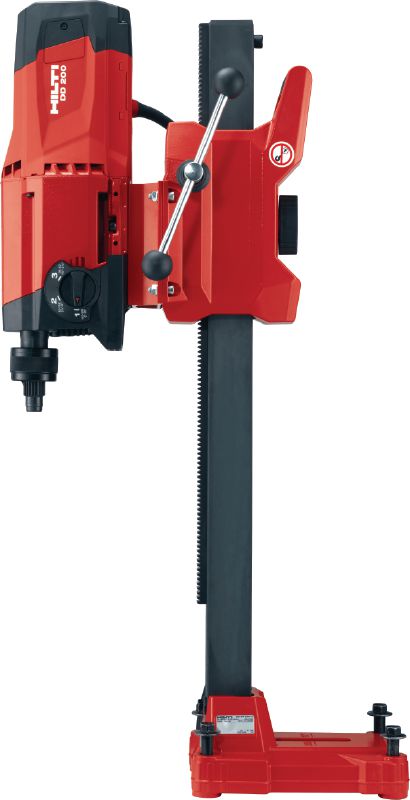

- Compatible with the sturdy and simple DD-ST 200 drilling stand, as well as many common, industry-standard drilling stands
Applications
- Making penetrations for ducts, pipes and cables
- Openings for ventilation

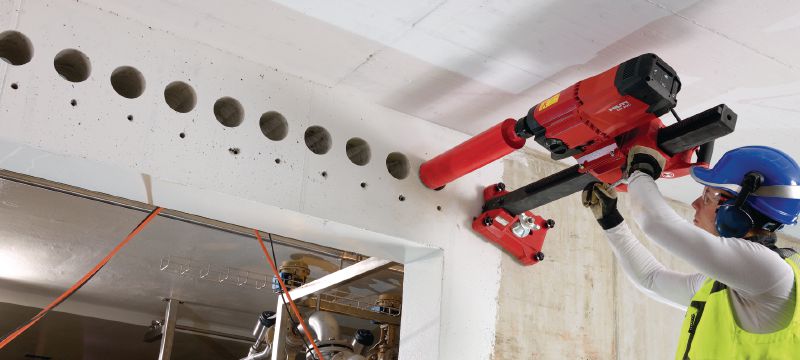

- Stitch drilling for breaches
- Coring holes for service entries
- Coring holes in ceilings, walls and floors without hammering and vibration
For approval or certificate information, please see individual items.
Services
LifeTime Services
- No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
