DD 160 Core drill

Package DD 160 STD Kit #3653361

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
61792.tif

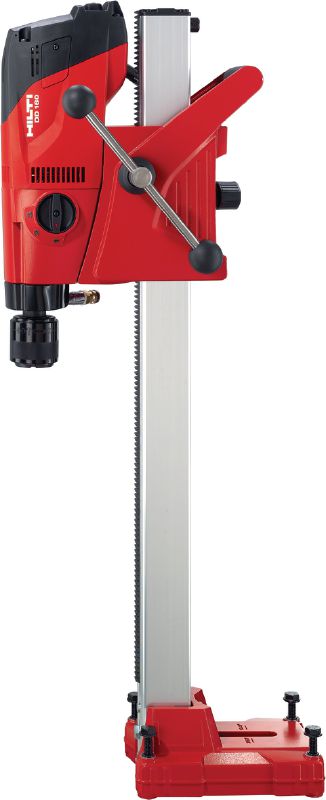

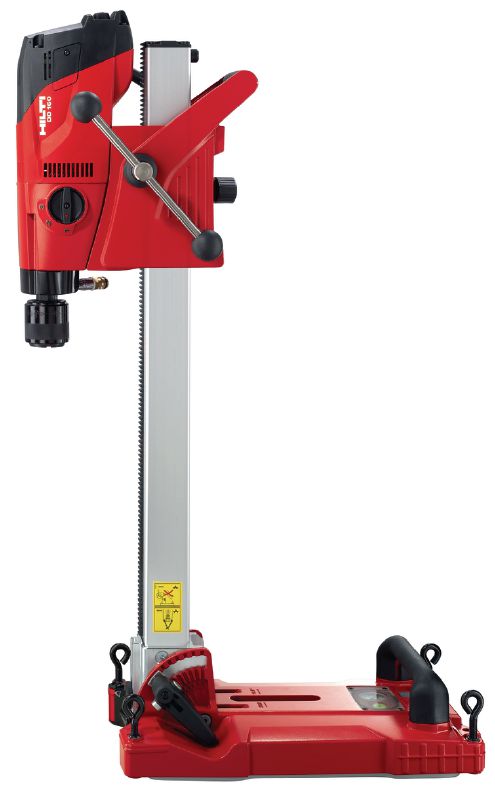

Drill Stand
Drill Stand
61789.tif
61791.tif
61790.tif
61788.tif

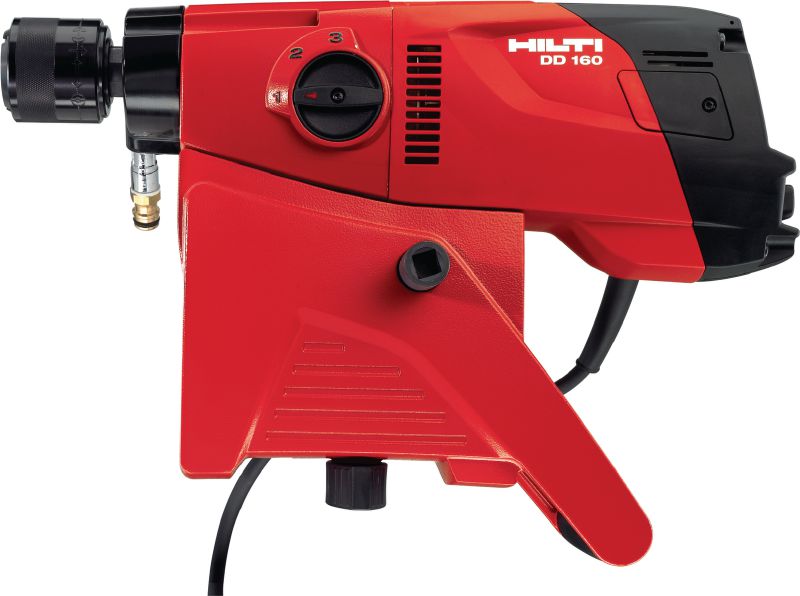

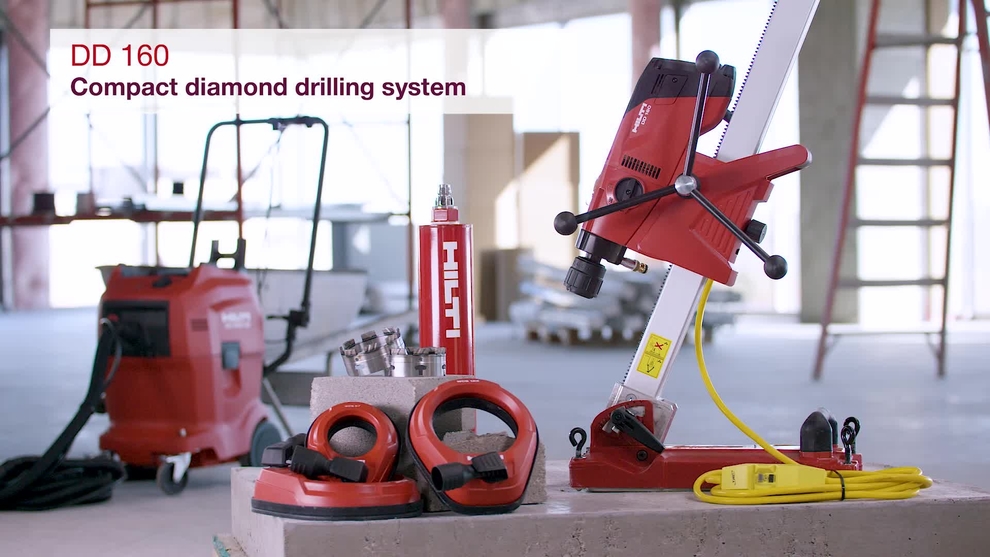

Compact but powerful diamond coring machine for rig-based concrete coring from 25-202 mm (31/32 – 7-15/16") in diameter

  • Diameter range: 25 - 202 mm
  • Base material: Concrete
  • Operation mode: Rig-based drilling system

Customers also searched for Diamond Coring Tools, Mesin Coring, Coring or Core Drill.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net, exclusive of 2% handling fee
Rp84,647,700.00
Rp84,647,700.00 / 1 each

Technical Data

Diameter range
25 - 202 mm
Base material
Concrete
Operation mode
Rig-based drilling system
Number of gears
3
No load RPM
gear 1: 460 rpm; gear 2: 760 rpm; gear 3: 1690 rpm
Weight according to EPTA-Procedure 01/2003 without battery
10.3 kg
Weight of complete system
16 kg
Dimensions (LxWxH)
450 x 195 x 315 mm
A-weighted emission sound pressure level
93 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
4 m/s²
Tri. vibr. value for drilling into concrete (wet) (ah,DD) - core bit A
PS/PL
  1. according to EN 62841-2-6

Documents

pdf DD 160 product catalog [ 83 KB ]

Features & Applications

Features

  • Exceptionally user-friendly thanks to intuitively-designed features and controls
  • Sturdy three-speed gearing for outstanding concrete coring performance across the entire diameter range
  • Power control LED – shows even inexperienced users how to achieve the optimum drilling speed and maximise core bit life
  • Choice of a high-grade drill stand with many useful features or simple, very compact drill stand with basic functionality
  • Hilti BI+ quick-release connection lets you change core bits in seconds – no tools required (keyless system)

Applications

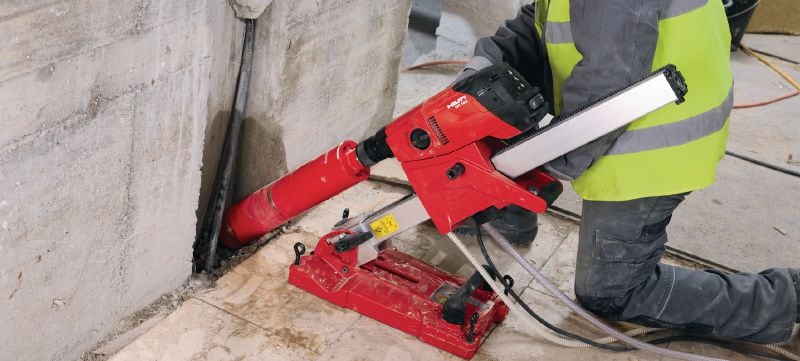

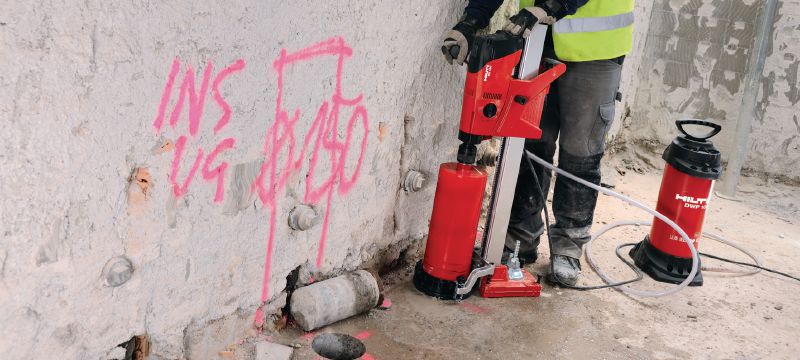

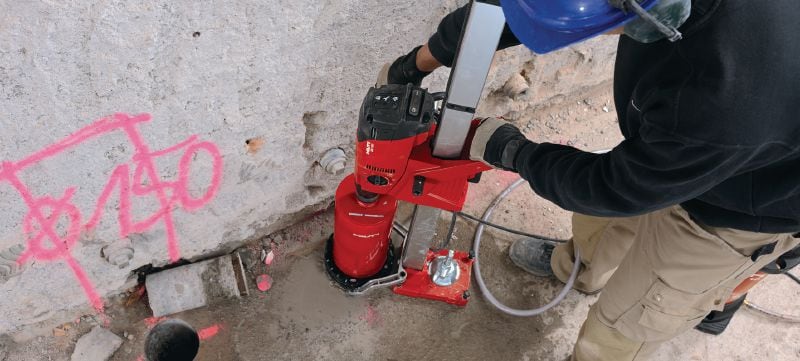

  • Rig-based wet drilling in concrete for pipe penetrations in plumbing, heating and air conditioning installations
  • Stitch drilling for cable trays and ventillation ducts

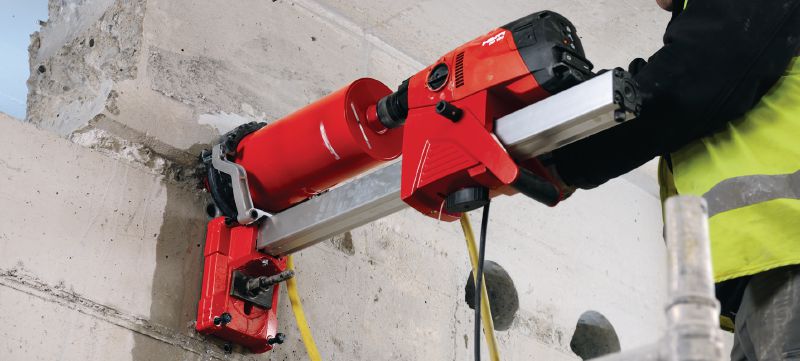

  • Drilling blind holes for large-diameter anchors, reinforcing bars and the installation of railings and barriers
  • Rig-based core drilling in wood up to 202 mm (8") diameter

Services

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 1-month no-repair-cost period again after every repair
