DD 30-W Core drill

Configurator
Technical Data
Features & Applications
Related Products
DD 30-W (86948)
DD 30-W (86955)
L098855_cropped (179860)
L098769_cropped (179861)
L094451_cropped (181091)

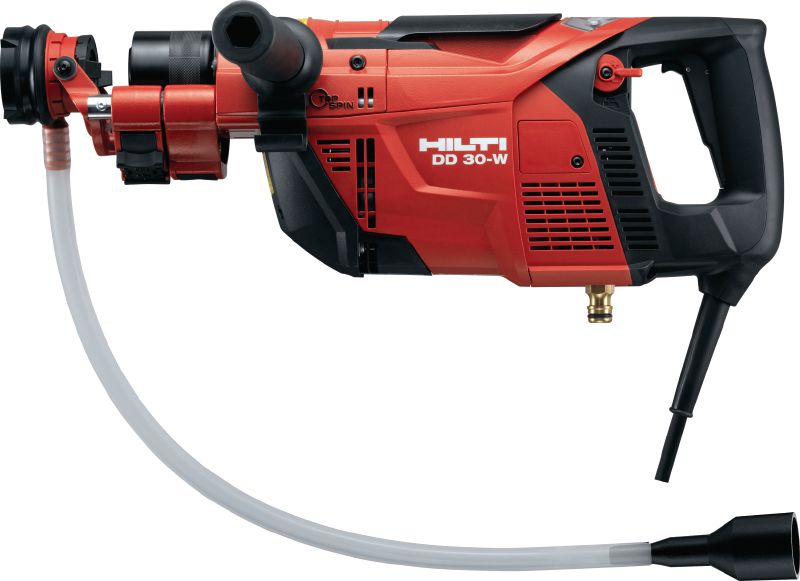

Compact, light diamond coring machine for wet, handheld coring of heavy-duty anchor and rebar holes from 8-35 mm (5/16 - 1-3/8") in diameter

  • Diameter range: 8 - 35 mm
  • Base material: Concrete, Masonry

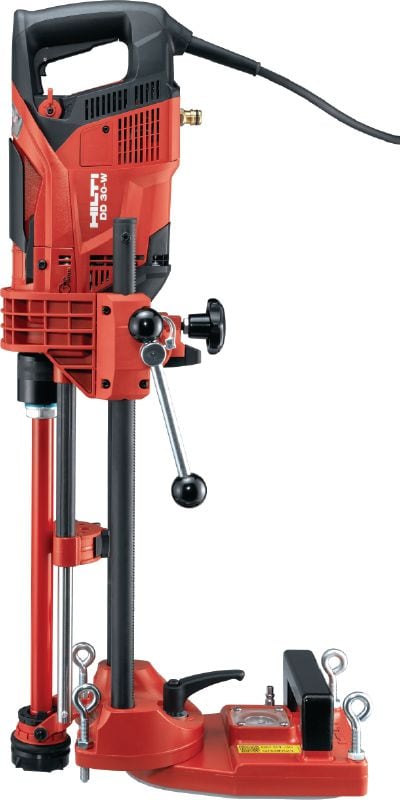

  • Operation mode: Hand-held and rig-mounted drilling system

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net, exclusive of 2% handling fee
From Rp123,853,122.00

Technical Data

Diameter range
8 - 35 mm
Base material
Concrete, Masonry
Operation mode
Hand-held and rig-mounted drilling system
Number of gears
1
No load RPM
gear 1: 9200 rpm
Weight according to EPTA-Procedure 01/2003 without battery
7.6 kg
Dimensions (LxWxH)
429 x 127 x 238 mm
A-weighted emission sound pressure level
88 dB (A) 1
Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD)
6 m/s²
Tri. vibr. value for drilling into concrete (wet) (ah,DD) - core bit A
C+ 18/300 SPX-T
Corner accessibility
45 mm
  1. according to EN 62841-2-6

Features & Applications

Features

  • Very low drilling noise – the ideal solution for drilling in inhabited buildings
  • Impact-free drilling reduces the risk of damage to brittle materials and allows drilling close to edges
  • Fast drilling through rebar thanks to the unique TopSpin technology
  • Soft-start feature for precise hole positioning
  • The quick-lock keyless chuck system makes changing core bits quicker and easier than ever

Applications

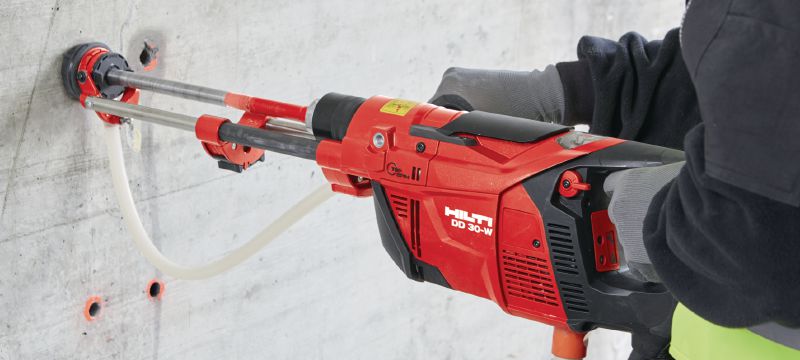

  • Drilling accurate anchor holes and through holes 8 to 35 mm (5/16 - 1-3/8") in diameter

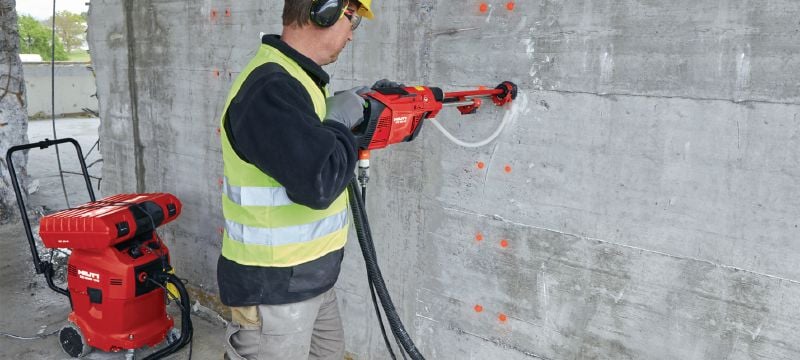

  • Low-noise drilling for setting anchors during renovation work in hospitals, commercial and residential buildings
  • Wet coring in heavily-reinforced concrete, masonry and natural stone
  • Wet coring in brittle materials (marble, tiles, masonry, natural stone) and close to edges

For approval or certificate information, please see individual items.
