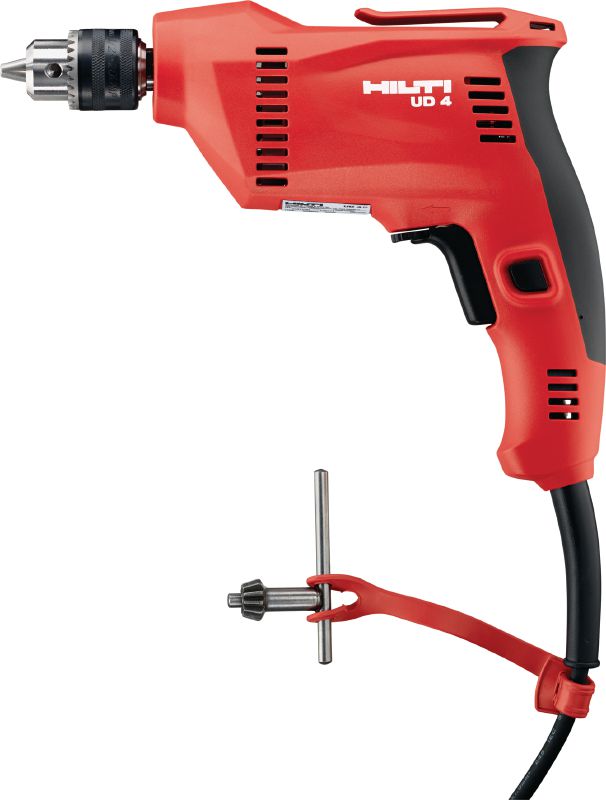

UD 4 Drill driver

Drill UD 4 230V #2188268

Configurator
Technical Data
Features & Applications
Related Products

Lightweight, compact corded drill driver for applications in metal and wood

  • Chuck clamping range: 1 - 10 mm
  • No load RPM: gear 1: 3200 rpm
  • Maximum torque (soft/hard joint): 12 Nm (soft joint)

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net, exclusive of 2% handling fee
Rp1,411,498.80
Rp1,411,498.80 / 1 each

Technical Data

Chuck clamping range
1 - 10 mm
No load RPM
gear 1: 3200 rpm
Maximum torque (soft/hard joint)
12 Nm (soft joint)
Number of gears
1
Dimensions (LxWxH)
233 x 67 x 198 mm
Weight
1.37 kg
Triaxial vibration value for drilling into metal (ah,D)
3.5 m/s² 1
Chuck type
Keyed chuck
  1. According to the applicable product standard (see Operating Instruction for more details)

Features & Applications

Features

  • Lightweight and compact tool
  • 3,000 rpm for the highest productivity in metal drilling
  • 10 mm keyed metal chuck
  • Subcompact-class tool delivering compact-class performance
  • Engineered to deliver best-in-class performance as a system with Hilti HSS drill bits

Applications

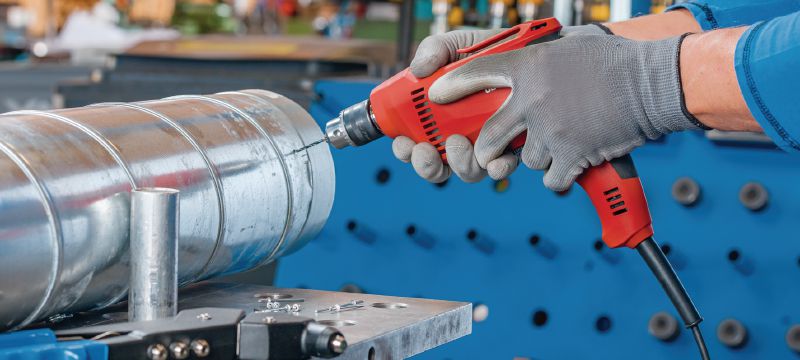

  • HVAC ducts

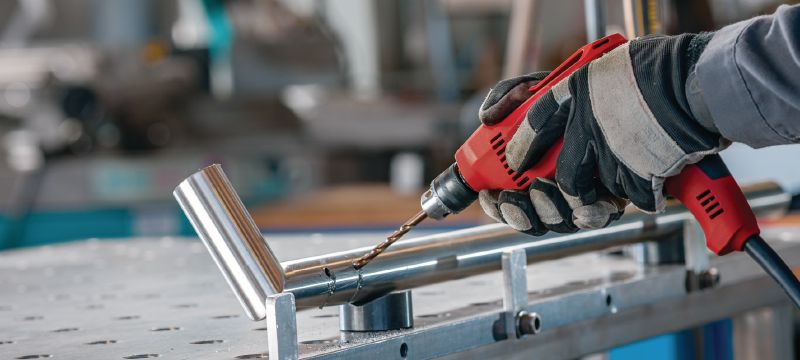

  • Handrails, balustrades and ladders

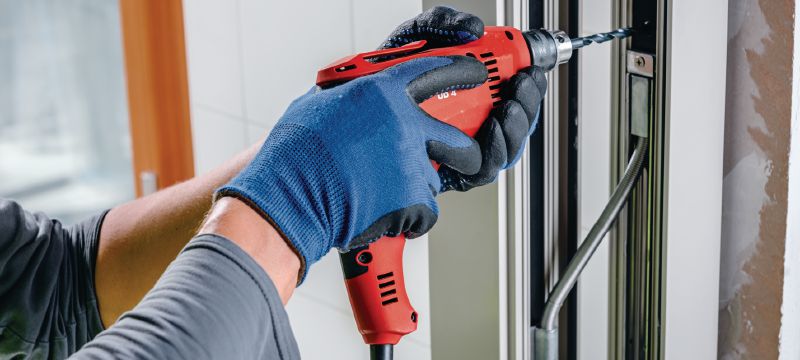

  • Curtain wall frames
  • Drilling into primary steel
  • Steel support angles
