TE-YX (SDS Max) Metric hammer drill bit

Ultimate SDS Max (TE-Y) hammer drill bit for exceptional drilling performance in reinforced concrete (metric)

  • Connection end: TE-Y (SDS-max)
  • Base material: Reinforced concrete, Concrete, Masonry, Brick, Sand-lime block
  • Working mode: Hammer drilling

Customers also searched for Mata BorBor BetonSDS Max or Bor.

Technical Data

Connection end
TE-Y (SDS-max)
Base material
Reinforced concrete, Concrete, Masonry, Brick, Sand-lime block
Working mode
Hammer drilling
Head shape
Multi cutter
Head material composition
Tungsten carbide

Features & Applications

Features

  • Optimised multi-cutter (4 or 6-cutter) carbide head – superior drilling performance and less jamming when hitting rebar
  • Heat-treated flute offers superior wear resistance and maximum robustness, with a wear mark to estimate the bit's suitability for setting anchors
  • Slimmer and lighter helix for more comfortable drilling and superior drilling speed
  • Fully embedded drill bit head for maximum durability and longer life
  • In the unlikely event of breakage, the drill bit will be considered for replacement as long as the wear mark on the helix is still visible

Applications

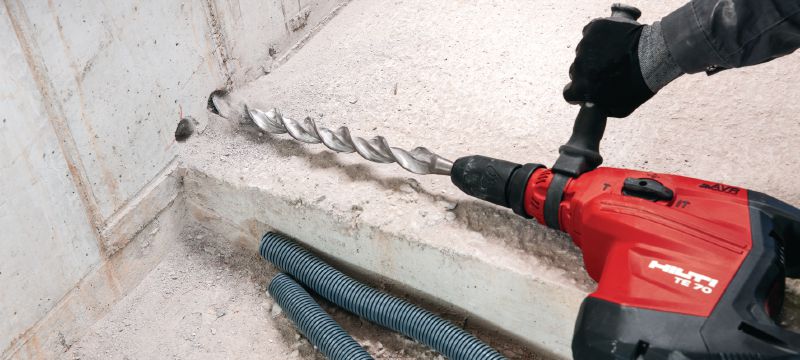

  • Hammer drilling in reinforced concrete, concrete, masonry and other construction materials
  • Drilling holes for all chemical anchor installation purposes
  • Drilling anchor holes for all mechanical anchor installation purposes
  • Installing rebar using Hilti injectable adhesive mortar
  • Extra-long drill bits available for renovation work, e.g. sealing joints in masonry and concrete to prevent water penetration

For approval or certificate information, please see individual items.
