HDA-P Undercut anchor

Undercut anchor HDA-P M12x125/30 #331546

Configurator
Technical Data
Documents
Features & Applications
Related Products
L060070.tif
HAD Design anchors
HDA
HDA
HDA-PF, HDA-TF
Deckenkran 05703.tif

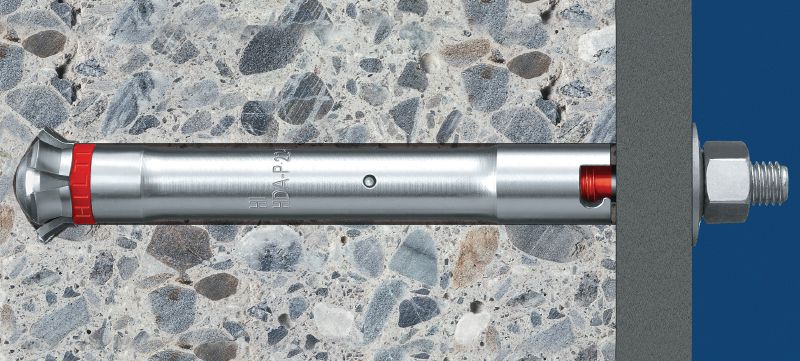

Ultimate-performance pre-set undercut anchor for dynamic loads (zinc-plated)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Externally threaded
  • Approvals / test reports: ETA, Fatigue, Seismic

Choose options

Anchor size
  • M12
Standard embedment depth
  • 125 mm
Max. fixture thickness at standard embedment depth
  • 30 mm
Pack size
  • 8 pc
 Product options
Quantity
Pack
Total Pieces
8
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net, exclusive of 2% handling fee
Price loading error occured

Please contact us

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Approvals / test reports
ETA, Fatigue, Seismic
Max. fixture thickness at standard embedment depth
30 mm
Fatigue loading
Yes
PROFIS software
Yes

Documents

Technical information
Approval document
Brochure
Sustainability Documentation
pdf Technical data sheet for the HDA design anchor, English [ 1.3 MB ]
pdf FTM_HDA, English [ 5.1 MB ]
pdf HDA-P FTM 2015, English [ 2.9 MB ]
pdf AU PDS AM HDA design undercut anchor, English [ 2.7 MB ]

Features & Applications

Features

  • Combines the flexibility and immediate loading capability of a post-installed mechanical anchor with the performance of a cast-in-place headed stud
  • Close spacing and small edge distances thanks to low expansion forces
  • Self-undercutting facilitates faster and more reliable installation without need for a separate undercutting tool or additional operations
  • The resulting keying effect provides a more secure hold even in cracked concrete under dynamic loading
  • Manufactured under an NQA-1 nuclear quality assurance program with comprehensive approvals

Applications

  • Safety-relevant, heavy-duty fastenings for all dynamic loading (shock, seismic and fatigue) in cracked or uncracked concrete, including applications in nuclear power plants
  • Fastenings to support heavy pipes, safety barriers, industrial machines, crane rails, dorm structures, crash barriers, roof fixings, elevator tracks, bridge retrofitting etc.
