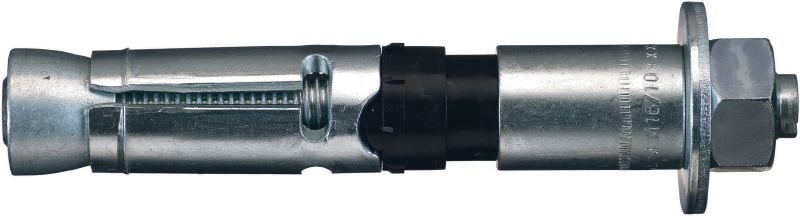

HSL-3-G Heavy-duty wedge anchor

Ultimate-performance heavy-duty expansion stud anchor with approvals for safety-relevant applications in concrete (carbon steel, external thread)

Material, corrosion: Carbon steel, zinc-plated
Head configuration: Externally threaded
Approvals / test reports: ETA, Fire, ICC-ES report (concrete), Nuclear (NQA-1), Seismic

Customers also searched for Heavy Duty Anchor Bolt, Heavy Duty Expansion Anchor, Seismic Anchor, Shock Anchor or fire approved anchor bolt.

Choose options

Anchor size

Anchor length

102 mm
122 mm
135 mm
139 mm
163 mm
164 mm
188 mm
190 mm
214 mm

Pack size

6 pc
10 pc
20 pc
40 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net, exclusive of 2% handling fee

From Rp184,800.00

Technical Data

Material, corrosion

Carbon steel, zinc-plated

Head configuration

Externally threaded

Approvals / test reports

ETA, Fire, ICC-ES report (concrete), Nuclear (NQA-1), Seismic

Base materials

Concrete (cracked), Concrete (uncracked)

Type of fastening

Through-fastening

Installation tools

TE 30-A36 Cordless rotary hammer

PROFIS software

Yes

Documents

Features & Applications

Features

High tensile and shear load capacity
Force-controlled expansion allows follow-up expansion
ETA Option 1 for cracked and uncracked concrete
ICC-ES/AC 193 for cracked or uncracked concrete and seismic applications
Suitable for dynamic loading including fatigue, seismic and shock

Applications

Heavy-duty fastenings in highly safety-relevant or dynamic applications, including applications in nuclear power plants
Applications where extensive approval back-up or technical back-up is required, e.g. machines, heavy equipment, steel columns, heavy pipe supports, pumps, beam supports, medical equipment, cantilevers, cranes, car hoists, etc.

For approval or certificate information, please see individual items.
