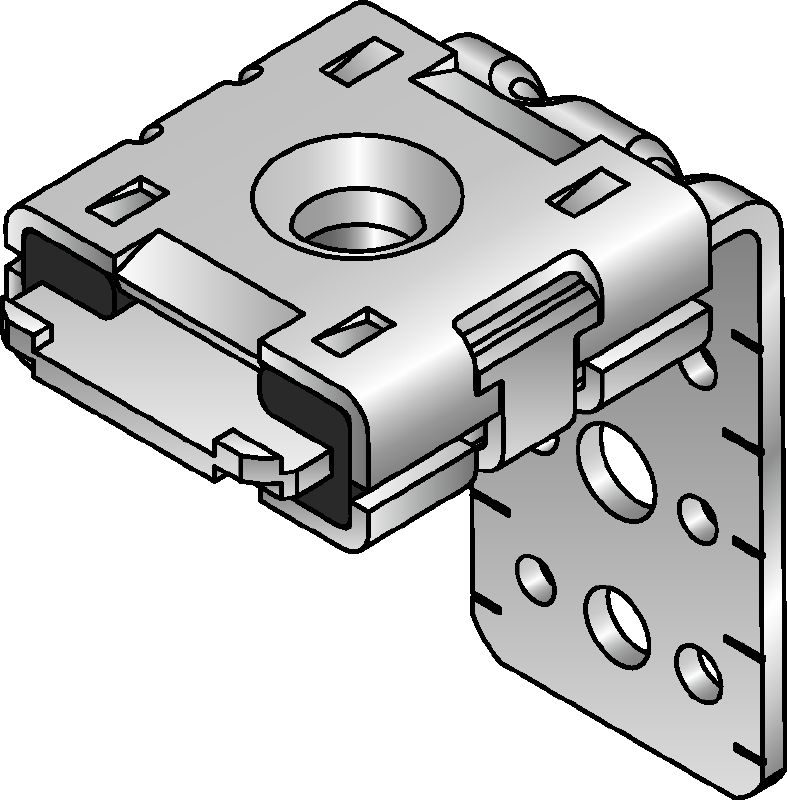

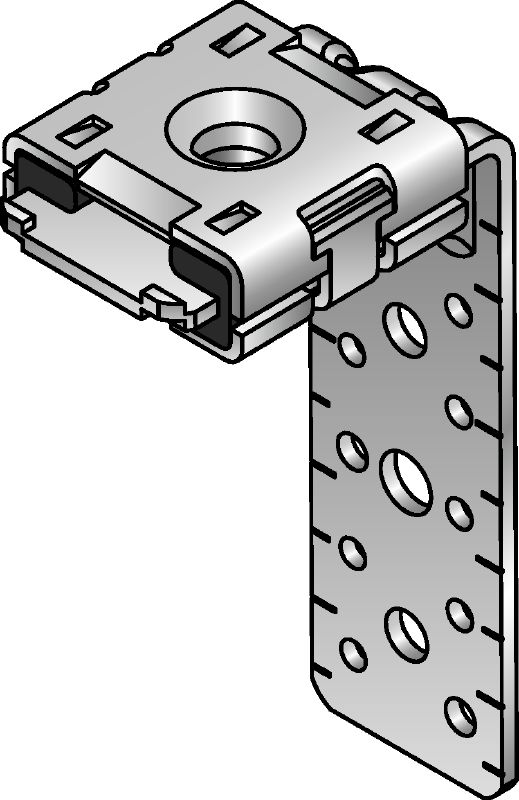

Galvanised air duct bracket with a length of 100 mm for fastening ventilation ducts directly to ceilings

  • Noise reduction: 12 dB (A)
  • Material composition: Angle: St1203 - DIN EN 10130, Plate: DC01-A-g - DIN EN 10130
  • Surface finish: Indoor Coated - Electro galvanised

Choose options

Thread connection - M
  • M8, M10
Length - L
  • 100 mm
Maximum load - F
  • 800 N
Pack size
  • 25 pc
Product options
Quantity
Pack
Total Pieces
25
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net, exclusive of 2% handling fee

Rp3,825,000.00

Rp153,000.00 / 1 each

Technical Data

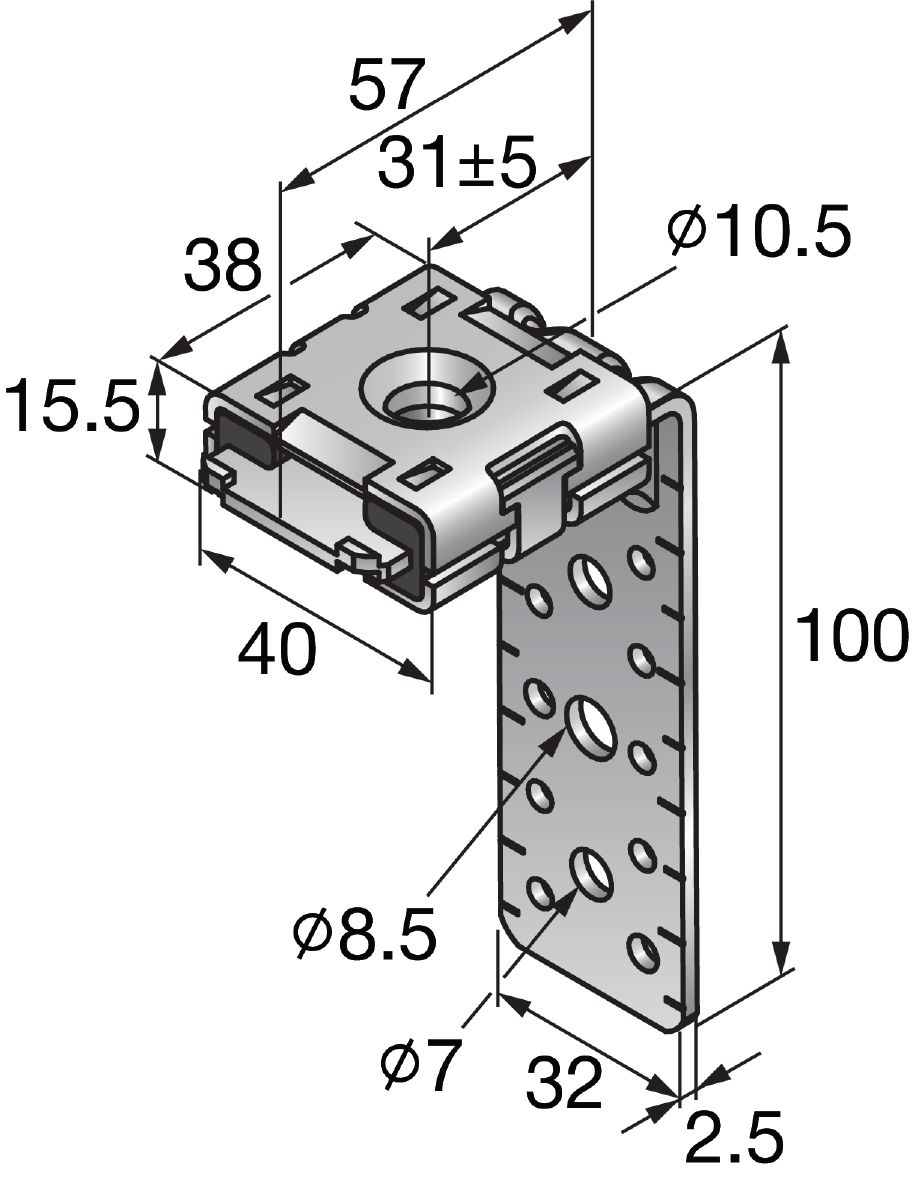

77793_MVA_LP100_bemasst.eps
Noise reduction
12 dB (A)
Material composition
Angle: St1203 - DIN EN 10130, Plate: DC01-A-g - DIN EN 10130
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Hardness insulation material
40° ±5° Shore A
Temperature resistance
-40 - 110 °C

Documents

Features & Applications

Features

  • Convenient solution for fastening ventilation ducts directly to ceilings, suspending from threaded rods or in conjunction with the MQ strut system for rising ducts
  • Scale for precise alignment and stand-off installation
  • Movable cage – compensates for structural tolerances and allows repositioning to help avoid drilling into rebar
  • Hole size/shape suitable for fastening to ducts using self-drilling screws (4.2, 4.8, 6.3), blind rivets and metric screws/threaded rods (M8)
  • 30 mm space between the threaded rod and the duct – for easier subsequent addition of insulation

Applications

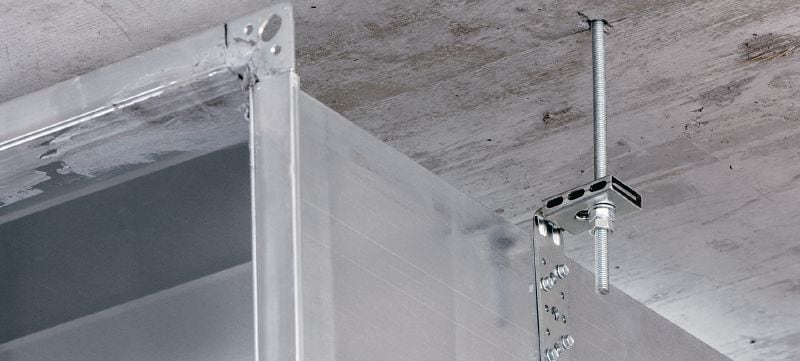

  • Fastening rectangular air ducts to ceilings
