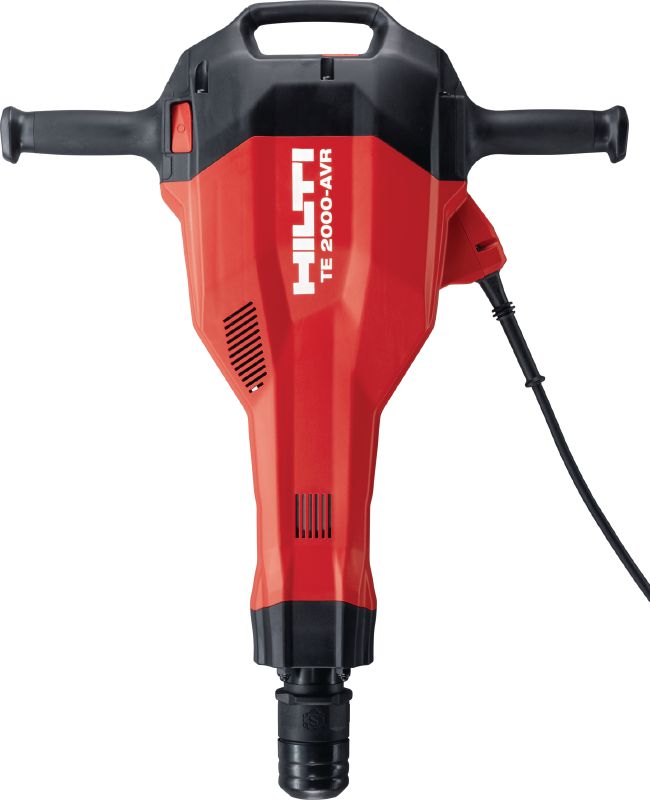

Powerful and extremely light TE-S breaker for concrete and demolition work

  • Working direction: Floor
  • Tool chuck type: TE-S
  • Weight according to EPTA-Procedure 01/2003 without battery: 14.5 kg

Customers also searched for BreakerFloor BreakerJackhammerMesin Bobok or TE-S.

Technical Data

Working direction
Floor
Tool chuck type
TE-S
Weight according to EPTA-Procedure 01/2003 without battery
14.5 kg
Single impact energy
35 J
Full hammering frequency
1800 impacts/minute
Max. chiselling performance
14200 cm³/min
Dimensions (LxWxH)
731 x 574 x 146 mm
Triaxial vibration for chiselling in concrete
3.9 m/s² 1
Dust removal system available
TE DRS-B
A-weighted emission sound pressure level
88 dB (A) 2
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. according to EN 62841-2-6

Documents

Features & Applications

Features

  • Very low tool weight combined with high demolition performance for dedicated floor breaking
  • T-design for perfect handling in floor-breaking applications
  • Maintenance-free brushless SR motor and triple-chamber lubrication systems for longer service intervals and tool lifetime
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • Detachable supply cord for quick and easy replacement of damaged/broken cords on the jobsite

Applications

  • Medium-duty demolition of concrete slabs and foundations
  • Removing concrete for rebar connections and utility connections
  • Breaking work on concrete or other materials in basements and on patios in residential applications
  • Breaking out channels for laying pipe in plumbing applications

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • 1-month no-cost period after each paid repair
More information about Tool Services

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
More information about LifeTime Services
