DST 20-CA 2nd Wall saw

L086303_v2 (2875339)
L086319_v1 (2875344)
L108419_cropped (186710)
L108422_cropped (186714)
L600280_cropped (3157360)
L600451_cropped (3157363)

Electric wall saw for tough cutting jobs with cut assistance and on-board control electronics (no external e-box)

  • Motor power: 20 kW
  • Blade diameter - range: 600 - 1600 mm
  • Min. generator power: 40 kVA

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net, exclusive of 2% handling fee
Rp878,051,880.00
Rp878,051,880.00
/
1 each

Technical Data

Motor power
20 kW
Blade diameter - range
600 - 1600 mm
Min. generator power
40 kVA
Power source
Electric
Max. cutting depth
730 mm
Drive weight
32 kg
A-weighted emission sound pressure level
98 dB (A) 1
Drive dimensions (W x L x H)
1100 x 690 x 1180 mm
Remote control
Wireless
  1. according to EN 62841-2-6

Documents

pdf Electric Diamond Wall and Wire Saws Leaflet [ 9.7 MB ]

Features & Applications

Features

  • Saves you time for other tasks - Hilti Cut Assist equips tools for fully automated cutting. Starts when surface is detected, then continuously optimizes speed, gear and water flow
  • Faster cutting time – the Pull/Push mode functionality in Cut Assist reduces cutting times compared to the normal pulling mode
  • Easier assembly and disassembly – the integrated flush cutting flange makes it easier to use
  • No external e-box necessary – control electronics integrated on-board make the saw more compact, easier to handle and quicker to set up
  • Cutting depth is displayed in real time on the remote control

Applications

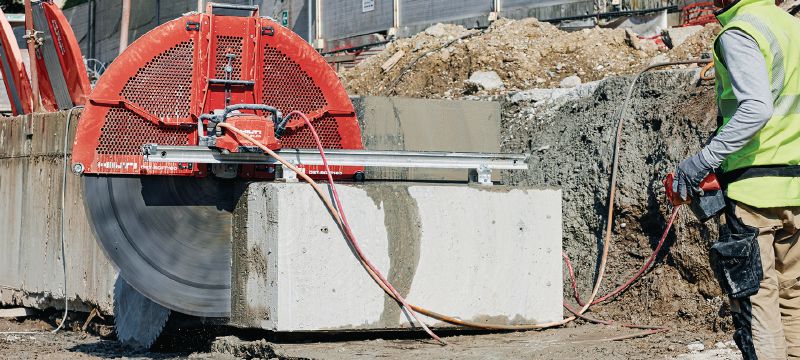

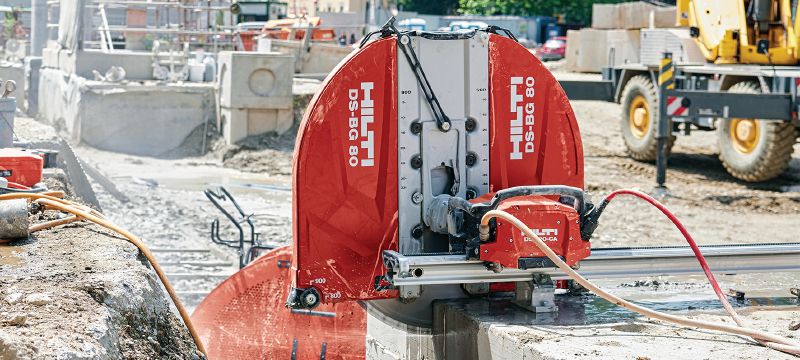

  • Cutting and extending openings in concrete walls and floors
  • Precise demolition of walls and floors with low vibration
  • Cutting through heavily reinforced concrete, synthetic and natural stone, brick and block and other mineral-based materials
  • Cutting in tight spaces and where access is difficult
  • Facade and balcony renovation

For approval or certificate information, please see individual items.
