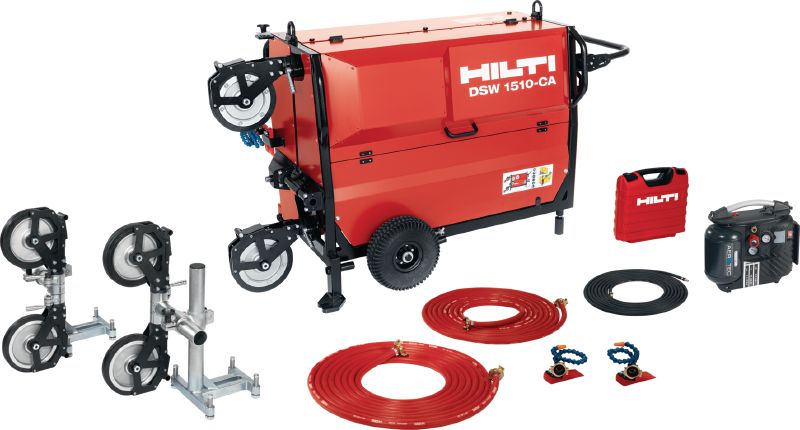

DSW 1510-CA Wire saw

Wire saw DSW 1510-CA 3x400V #2192258

Configurator
Technical Data
Documents
Features & Applications
Related Products
L140072_v2 (212048)
L140894_cropped (218543)
L140895_cropped (218542)
L140896_cropped (218544)

Electric wire saw (15 kW) designed for easier operation on heavy-duty cutting jobs with automatic wire tension, automatic cut steering, and wireless remote control

  • Motor power: 16 kW
  • Power source: Electric
  • Min. generator power: 40 kVA

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net, exclusive of 2% handling fee
Rp1,473,775,200.00
Rp1,473,775,200.00 / 1 each

Technical Data

Motor power
16 kW
Power source
Electric
Min. generator power
40 kVA
Weight
345 kg
A-weighted emission sound pressure level
82.7 dB (A) 1
IP protection class
IP 55 (EN 60529)
  1. according to EN 62841-2-6

Documents

Brochure
Material safety datasheet
pdf Electric Diamond Wall and Wire Saws Leaflet [ 9.7 MB ]

Features & Applications

Features

  • Cut Assist – equips diamond wire saws for fully automated cutting. Cut Assist means much higher productivity and more time for other tasks
  • Wireless remote control steering – the operator can stand at a safer distance from the wire saw during the cut
  • Electric box integrated – no extra cables needed
  • Higher initial torque to get the wire started
  • Keyless adjustment of the guide pulleys

Applications

  • Structural alterations to buildings or infrastructure – openings of all kinds and almost any shape
  • Sawing anything from heavily reinforced concrete to thick stonework
  • Demolition of structural components – such as bridges, chimneys, tunnels, dams, foundations
  • Sawing in noise-sensitive locations
  • Diamond wire cutting when space is too confined for wall saws
